9.3 VRF Lite

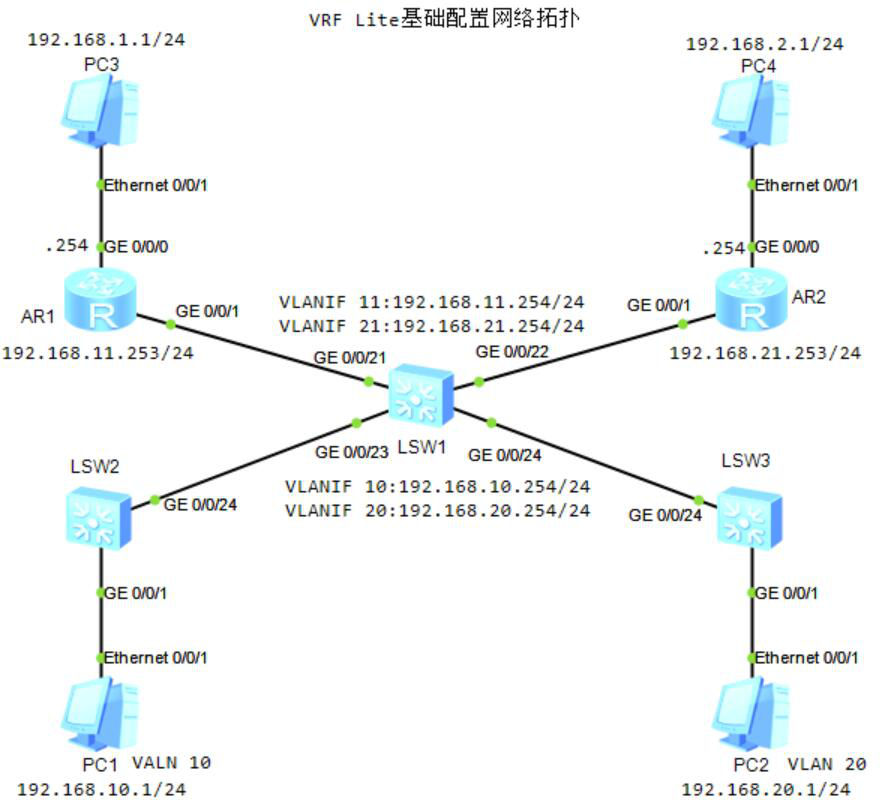

1.VRF Lite基础

VRF Lite可以实现一台PE转发多个实例，为多个不同的客户或业务服务。

1）R1配置

[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.1.254 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 192.168.11.253 24

2）R2配置

[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.254 24
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip address 192.168.21.253 24

3）SW1配置

[SW1]ip vpn-instance dsrw.com_A
[SW1-vpn-instance-dsrw.com_A]route-distinguisher 10:1
[SW1]vlan 10
[SW1]interface Vlanif 10
[SW1-Vlanif10]ip address 192.168.10.254 24
[SW1]vlan 11
[SW1]interface Vlanif 11
[SW1-Vlanif11]ip address 192.168.11.254 24
[SW1]vlan 20
[SW1]interface Vlanif 20
[SW1-Vlanif20]ip address 192.168.20.254 24
[SW1]vlan 21
[SW1]interface Vlanif 21
[SW1-Vlanif21]ip address 192.168.21.254 24
[SW1]ip route-static 192.168.1.0 24 192.168.11.253
[SW1]ip route-static vpn-instance dsrw.com_A 192.168.2.0 24 192.168.21.253
