7.2 防火墙虚拟系统

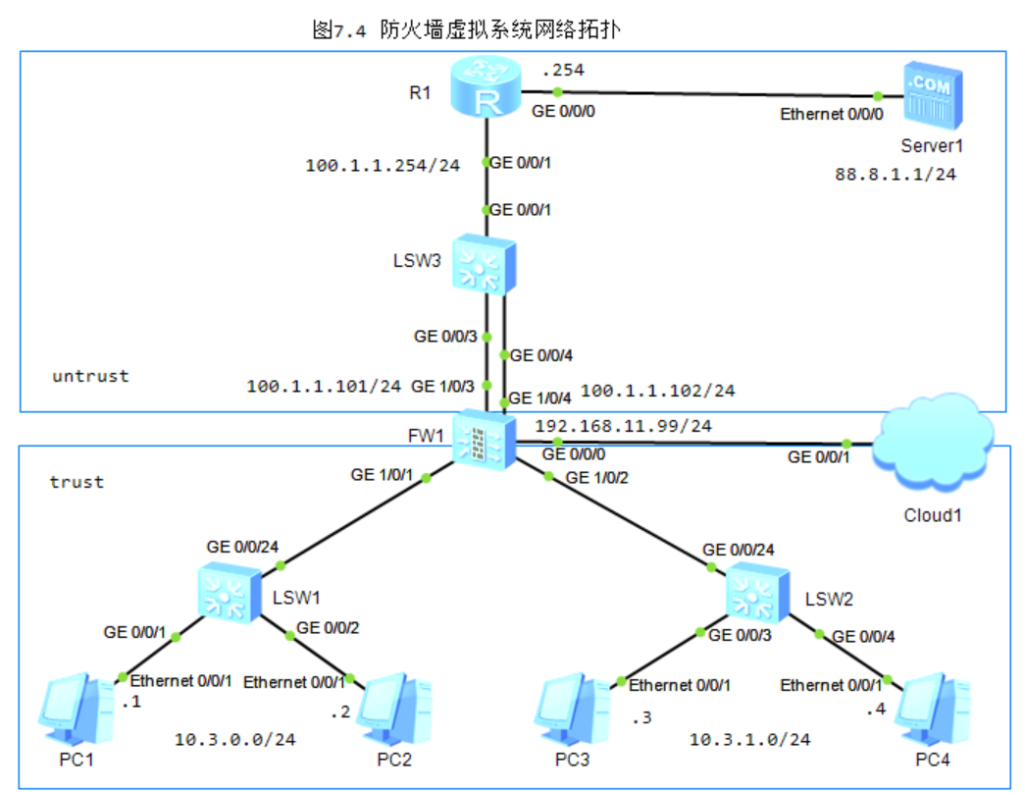

防火墙虚拟系统访问根系统

1）查看后台配置

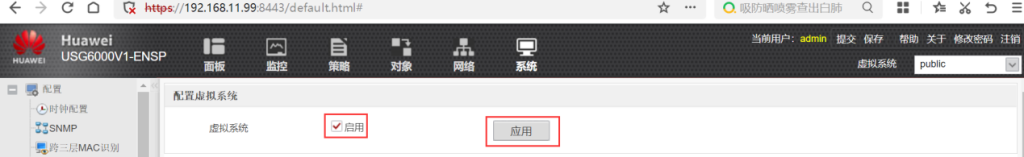

vsys enable

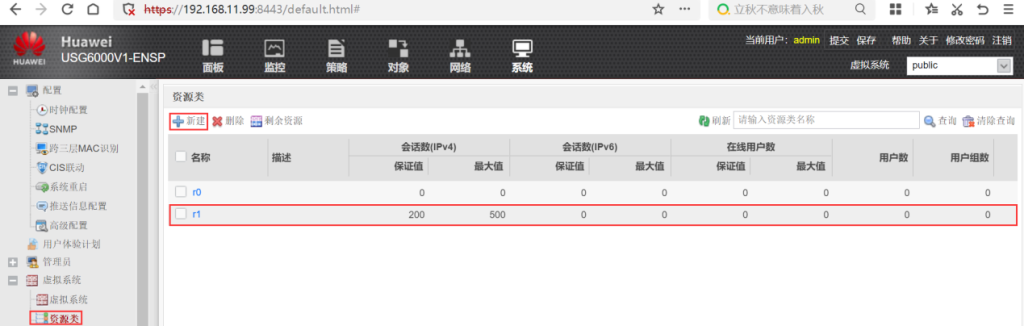

resource-class r0
resource-class r1
 resource-item-limit session reserved-number 200 maximum 500
#

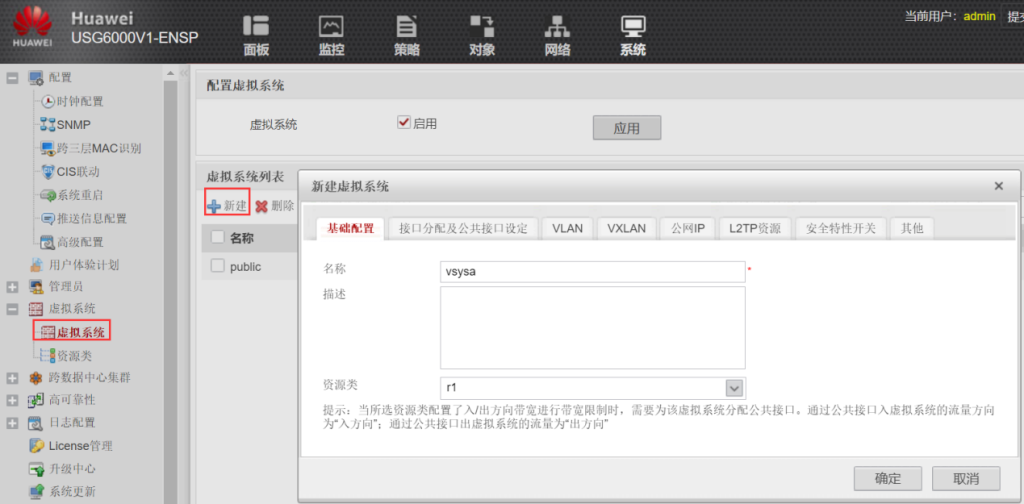

vsys name vsysa 1

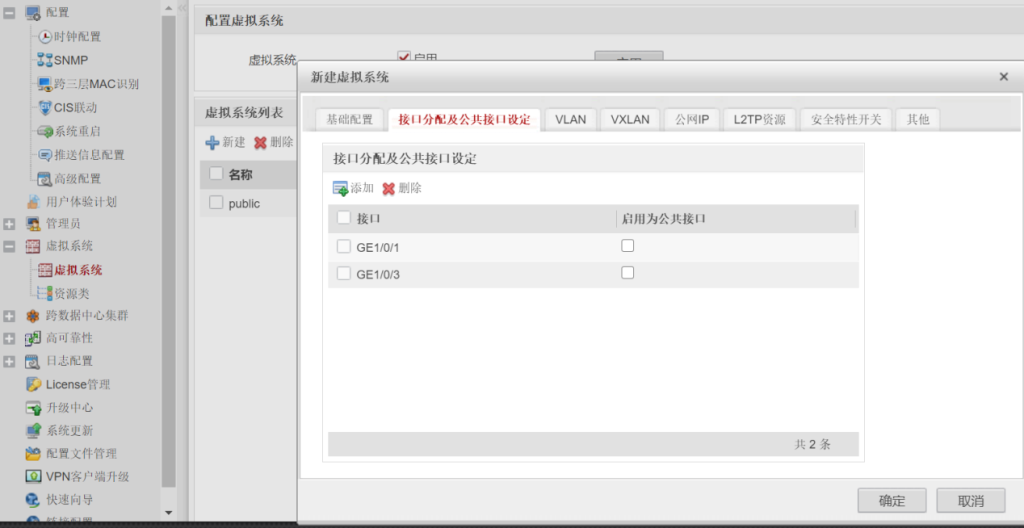

 assign interface GigabitEthernet1/0/1
 assign interface GigabitEthernet1/0/3
 assign resource-class r1
#
vsys name vsysb 2
 assign interface GigabitEthernet1/0/2
 assign interface GigabitEthernet1/0/4
 assign resource-class r1
#

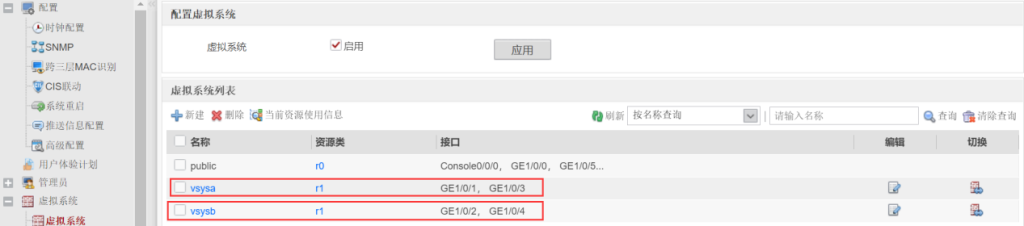

ip vpn-instance default
 ipv4-family
#
ip vpn-instance vsysa
 ipv4-family
 ipv6-family
#
ip vpn-instance vsysb
 ipv4-family
 ipv6-family
#
switch vsys vsysa
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip binding vpn-instance vsysa
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip binding vpn-instance vsysa
#
switch vsys vsysb
#
interface GigabitEthernet1/0/2
 undo shutdown
 ip binding vpn-instance vsysb
#
interface GigabitEthernet1/0/4
 undo shutdown
 ip binding vpn-instance vsysb

防火墙虚拟系统隔离

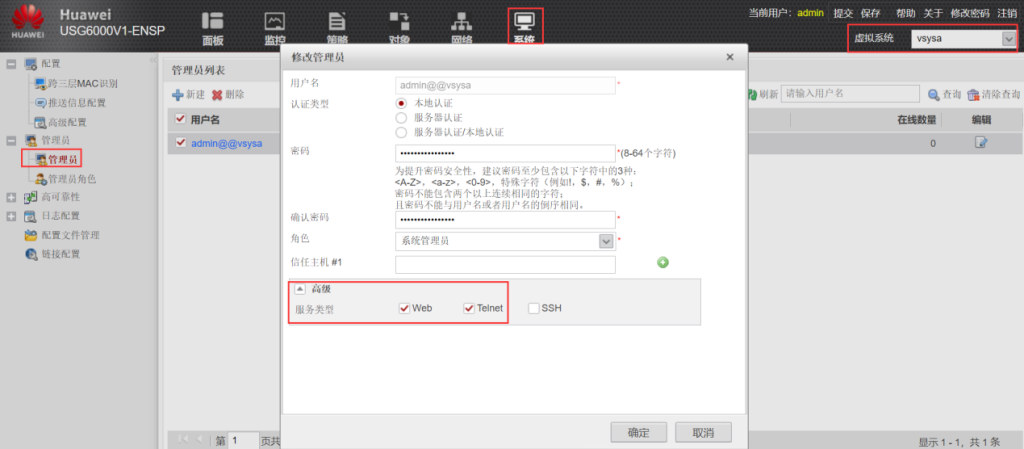

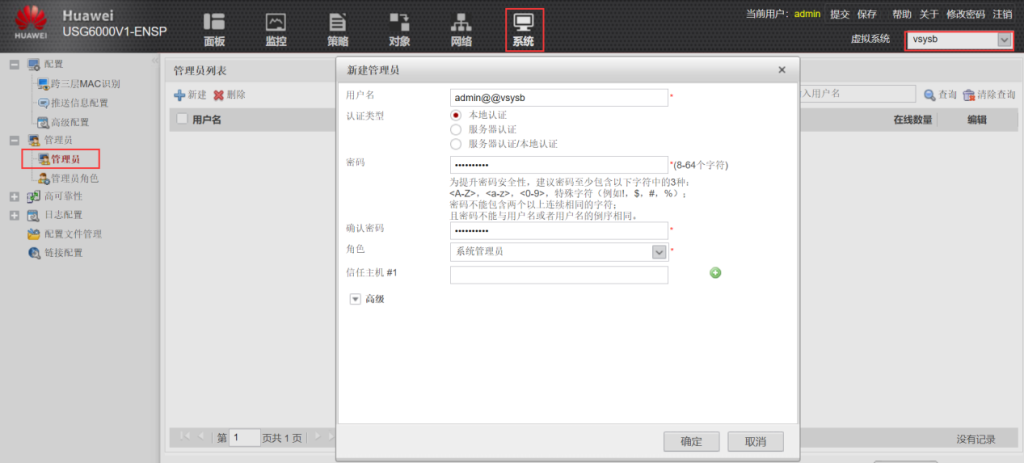

1）开启telnet登录
telnet server enable
user-interface con 0
 user-interface vty 0 4
protocol inbound all

2）PC机登录telnet

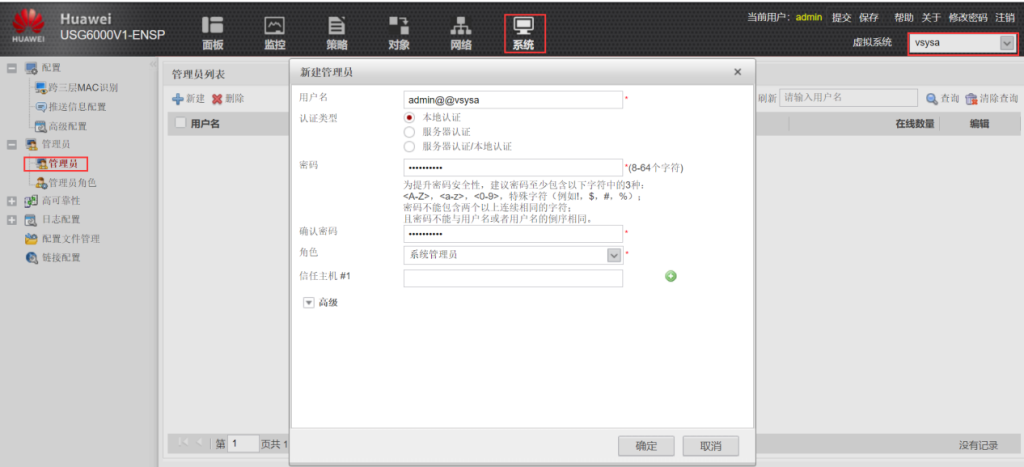

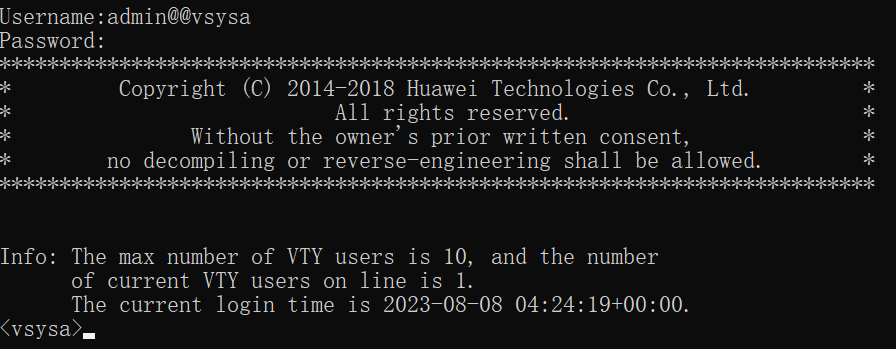

C:\Users\HP>telnet 192.168.11.99

3）查看配置
display current-configuration
#
switch vsys vsysa
interface GigabitEthernet1/0/1
 undo shutdown
 ip binding vpn-instance vsysa
#
interface GigabitEthernet1/0/3
 undo shutdown
 ip binding vpn-instance vsysa
#
interface Virtual-if1
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
#
firewall zone untrust
 set priority 5
#
firewall zone dmz
 set priority 50
quit

4）在防火墙中配置
（1）进入vsysa
#进入虚拟系统
switch vsys vsysa
sys

#配置接口
interface GigabitEthernet1/0/1
 ip address 10.3.0.254 255.255.255.0
 service-manage all permit

interface GigabitEthernet1/0/3
ip address 100.1.1.101 255.255.255.0
 service-manage all permit

#配置区域
firewall zone trust
 add interface GigabitEthernet1/0/1

firewall zone untrust
add interface GigabitEthernet1/0/3

#配置安全策略
security-policy
 rule name t_2_un
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 24
  action permit

#配置静态路由
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet 1/0/3 100.1.1.254

#配置NAT策略
nat-policy
 rule name t_2_un
  source-zone trust
  destination-zone untrust
  source-address 10.3.0.0 mask 255.255.255.0
  action source-nat easy-ip

（2）进入vsysb
#进入虚拟系统
switch vsys vsysb
sys

#接口配置
interface GigabitEthernet1/0/2
ip address 10.3.1.254 255.255.255.0
 service-manage all permit

interface GigabitEthernet1/0/4
 ip address 100.1.1.102 255.255.255.0
 service-manage all permit

#配置区域
firewall zone trust
 add interface GigabitEthernet1/0/2

firewall zone untrust
add interface GigabitEthernet1/0/4

#配置安全策略
security-policy
 rule name t_2_un
  source-zone trust
  destination-zone untrust
  source-address 10.3.1.0 24
  action permit

#配置静态路由
ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet 1/0/4 100.1.1.254

#配置NAT策略
nat-policy
 rule name t_2_un
  source-zone trust
  destination-zone untrust
  source-address 10.3.1.0 24
  action source-nat easy-ip
