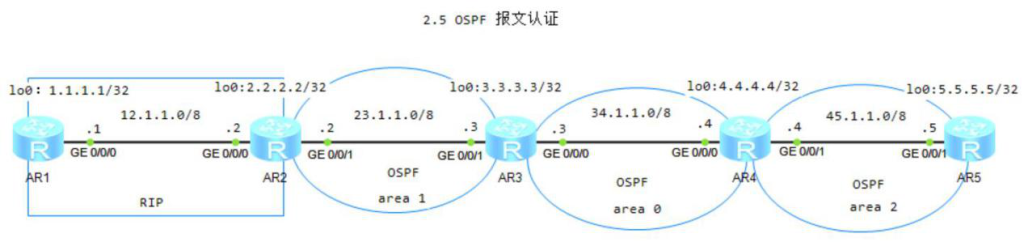

2.5 OSPF 报文认证

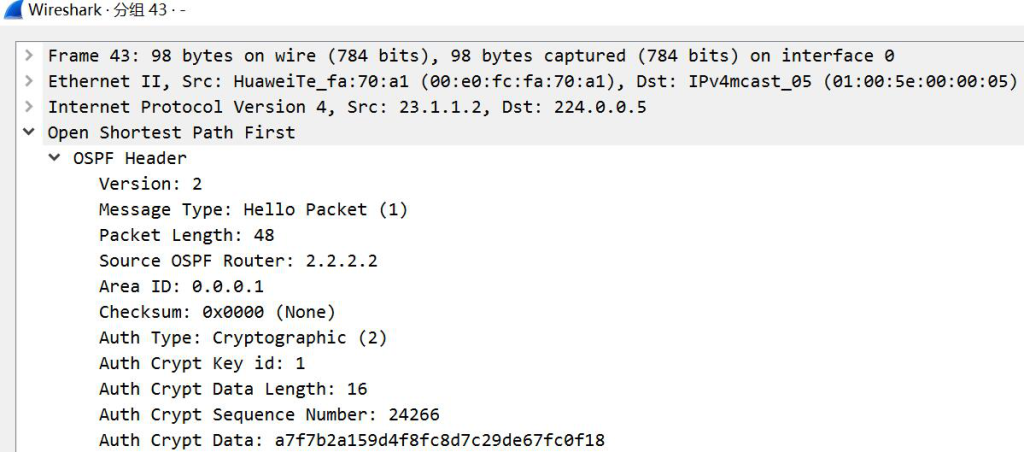

1.接口认证

[R2-GigabitEthernet0/0/1]ospf authentication-mode md5 1 cipher dsrw.com
[R3-GigabitEthernet0/0/1]ospf authentication-mode md5 1 cipher dsrw.com

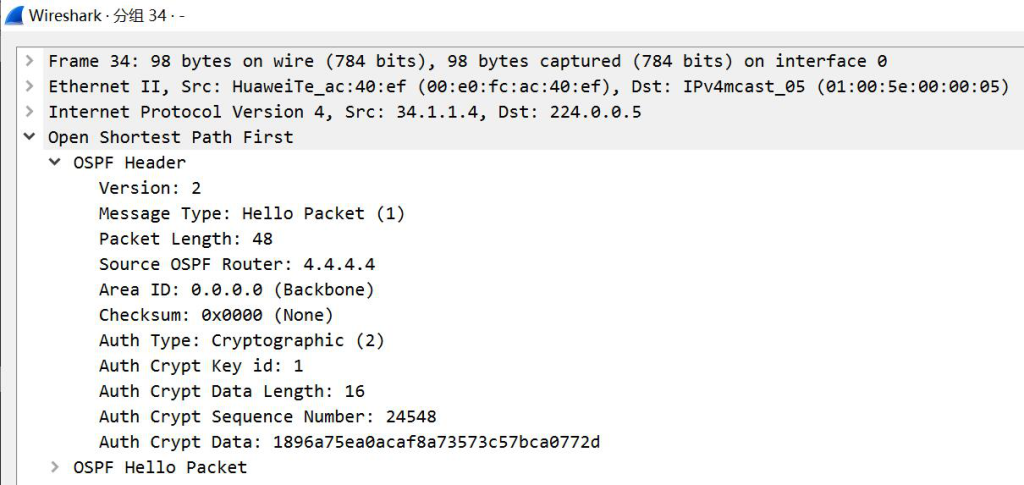

2.区域认证（区域0所有设备都必须配置）

[R3]ospf 1
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]authentication-mode md5 1 cipher dsrw.com

[R4]ospf 1
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]authentication-mode md5 1 cipher dsrw.com

3.虚电路认证

1）R1配置OSPF

[R1]ospf 1 router-id 1.1.1.1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[R1-ospf-1-area-0.0.0.0]network 12.1.1.0 0.255.255.255

2)R2配置OSPF

[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 12.1.1.0 0.255.255.255

[R2-ospf-1]area  1
[R2-ospf-1-area-0.0.0.1]network 23.1.1.0 0.255.255.255

3）R3配置OSPF

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]area 1
[R3-ospf-1-area-0.0.0.1]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.1]network 23.1.1.0 0.255.255.255
[R3-ospf-1-area-0.0.0.1]quit
[R3-ospf-1]area 2
[R3-ospf-1-area-0.0.0.2]network 34.1.1.0 0.255.255.255

4）R4配置OSPF

[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]area 2
[R4-ospf-1-area-0.0.0.2]network 4.4.4.4 0.0.0.0
[R4-ospf-1-area-0.0.0.2]network 34.1.1.0 0.255.255.255

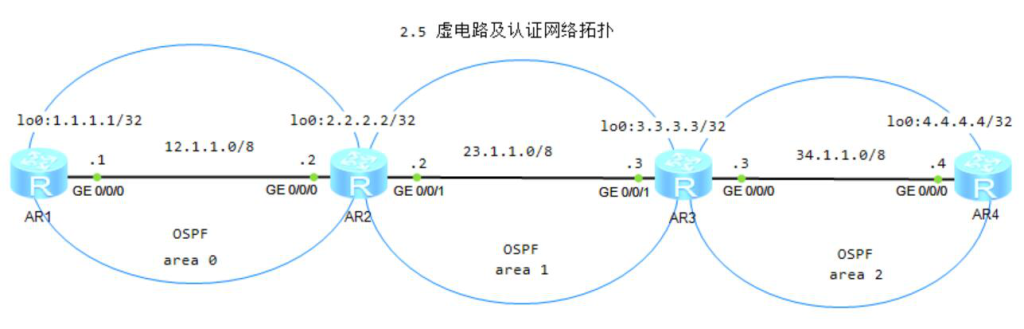

5）区域1配置虚电路及认证

[R2]ospf 1
[R2-ospf-1]area 1
[R2-ospf-1-area-0.0.0.1]vlink-peer 3.3.3.3 hmac-md5 1 cipher dsrw.com

[R3]ospf 1
[R3-ospf-1]area 1
[R3-ospf-1-area-0.0.0.1]vlink-peer 2.2.2.2 hmac-md5 1 cipher dsrw.com

[R2]display ospf vlink
         OSPF Process 1 with Router ID 2.2.2.2
                 Virtual Links
 Virtual-link Neighbor-id  -> 3.3.3.3, Neighbor-State: Full
 Interface: 23.1.1.2 (GigabitEthernet0/0/1)
 Cost: 1  State: P-2-P  Type: Virtual
 Transit Area: 0.0.0.1
 Timers: Hello 10 , Dead 40 , Retransmit 5 , Transmit Delay 1
 GR State: Normal

6）区域0做区域认证

（R3作为虚链路的端点，R3也要开启area0区域认证，否则虚链路无法正常建立），当同时出现区域认证和V-Link认证时，V-Link认证优先。
[R1]ospf 1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]authentication-mode md5 1 cipher dsrw.com

[R2]ospf 1
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]authentication-mode md5 1 cipher dsrw.com

[R3]ospf 1
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]authentication-mode md5 1 cipher dsrw.com
