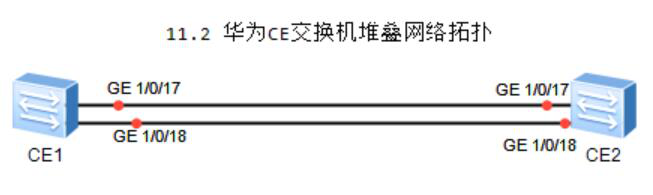

11.2 华为CE交换机堆叠

备注:ENSP模拟器不支持本实验，需要在真实环境中使用CE6800系列交换机

1.CE1配置

1）配置优先级和domain

[~CE1]stack
[~CE1-stack]stack member 1 priority 150
[~CE1-stack]stack member 1 domain 10
[~CE1-stack]quit
[~CE1-stack]commit

2）CE1的10GE1/0/17~10GE1/0/18口加入堆叠端口1/1

[~CE1]interface stack-port 1/1
[~CE1-stack-port 1/1]port member-group interface 10ge 1/0/17 to 1/0/18
[~CE1-stack-port 1/1]commit
[~CE1-stack-port 1/1]return

3）保存CE1配置后重启

<~CE1>save
<~CE1>reboot

4）关闭CE1堆叠端口

[~CE1]interface stack-port 1/1
[~CE1-stack-port 1/1]shutdown
[~CE1-stack-port 1/1]commit
[~CE1-stack-port 1/1]quit

2.CE2配置

1）配置优先级和domain

[~CE2]stack
[~CE2-stack]stack member 1 priority 120
[~CE2-stack]stack member 1 domain 10
[~CE2-stack]stack member 1 renumber 2 inherit-config
[~CE2-stack]quit
[~CE2-stack]commit

2）CE2的10GE1/0/17~10GE1/0/18口加入堆叠端口1/1

[~CE2]interface stack-port 1/1
[~CE2-stack-port 1/1]port member-group interface 10ge 1/0/17 to 1/0/18
[~CE1-stack-port 1/1]commit
[~CE1-stack-port 1/1]return

3）保存CE2配置后重启

<~CE2>save
<~CE2>reboot

4）打开CE1堆叠端口（CE2重启过程中打开CE1对接端口，CE2重启完成后再打开会因为堆叠合并而导致CE2再自动重启一次）

[~CE1]interface stack-port 1/1
[~CE1-stack-port 1/1]undo shutdown
[~CE1-stack-port 1/1]commit
[~CE1-stack-port 1/1]quit
