14.1 防火墙登录配置

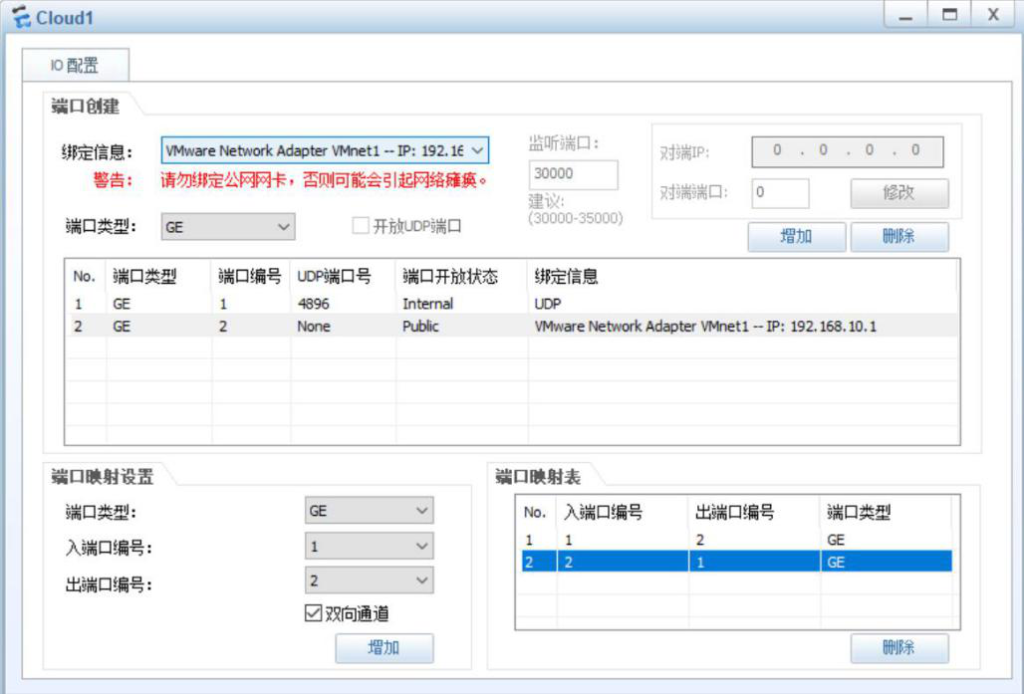

1.桥接防火墙

1）首次登录需要修改密码（默认账号：admin 默认密码:Admin@123）

Username:admin
Password:Admin@123
The password needs to be changed. Change now? [Y/N]: Y
Please enter old password:
Please enter new password:
Please confirm new password:
Error: New passwords are different.
 Info: Your password has been changed. Save the change to survive a reboot.
*************************************************************************
*         Copyright (C) 2014-2018 Huawei Technologies Co., Ltd.         *
*                           All rights reserved.                        *
*               Without the owner's prior written consent,              *
*        no decompiling or reverse-engineering shall be allowed.        *
*************************************************************************
<USG6000V1>

2）配置接口地址

[FW1]interface GigabitEthernet 0/0/0
[FW1-GigabitEthernet0/0/0]ip address 192.168.10.2 24
//与电脑主机的VMnet1网卡一致
[FW1-GigabitEthernet0/0/0]service-manage ping permit
//允许ping通FW接口

3）电脑与防火墙连通性测试

C:\Users\HP>ping 192.168.10.2

正在 Ping 192.168.10.1 具有 32 字节的数据:
来自 192.168.10.1 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.10.1 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.10.1 的回复: 字节=32 时间<1ms TTL=64
来自 192.168.10.1 的回复: 字节=32 时间<1ms TTL=64
192.168.10.1 的 Ping 统计信息:
    数据包: 已发送 = 4，已接收 = 4，丢失 = 0 (0% 丢失)，
往返行程的估计时间(以毫秒为单位):
    最短 = 0ms，最长 = 0ms，平均 = 0ms

2.防火墙的三种登录模式：telnet登录防火墙（物理电脑需要安装Tennet客户端，telnet 192.168.10.2）

[FW1]telnet server enable
[FW1]user-interface vty 0 4
[FW1-ui-vty0-4]protocol inbound telnet
[FW1-ui-vty0-4]authentication-mode password
[FW1-ui-vty0-4]set authentication password cipher dsrw.com
[FW1-ui-vty0-4]user privilege level 3
[FW1]interface GigabitEthernet 0/0/0
[FW1-GigabitEthernet0/0/0]service-manage telnet permit

C:\Users\HP>telnet 192.168.10.2
Password:                                                                                                               Warning: There is a risk on the user-interface which you login through. Please change the configuration of the user-interface as soon as possible.                                                                                                                                                                                                                      *************************************************************************                                               *         Copyright (C) 2014-2018 Huawei Technologies Co., Ltd.         *                                               *                           All rights reserved.                        *                                               *               Without the owner's prior written consent,              *                                               *        no decompiling or reverse-engineering shall be allowed.        *                                               *************************************************************************                                                                                                                                                                                                                                                                                               Info: The max number of VTY users is 10, and the number                                                                       of current VTY users on line is 1.                                                                                      The current login time is 2023-02-13 15:33:33+00:00.                                                              <FW1>

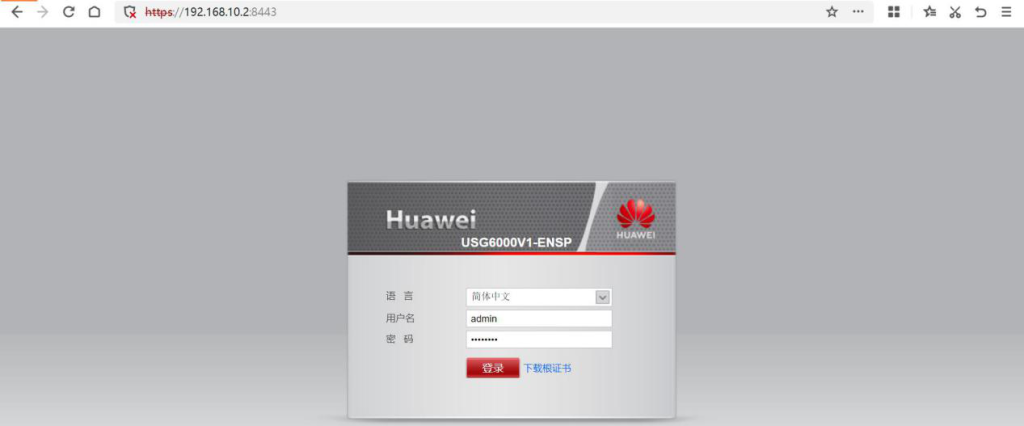

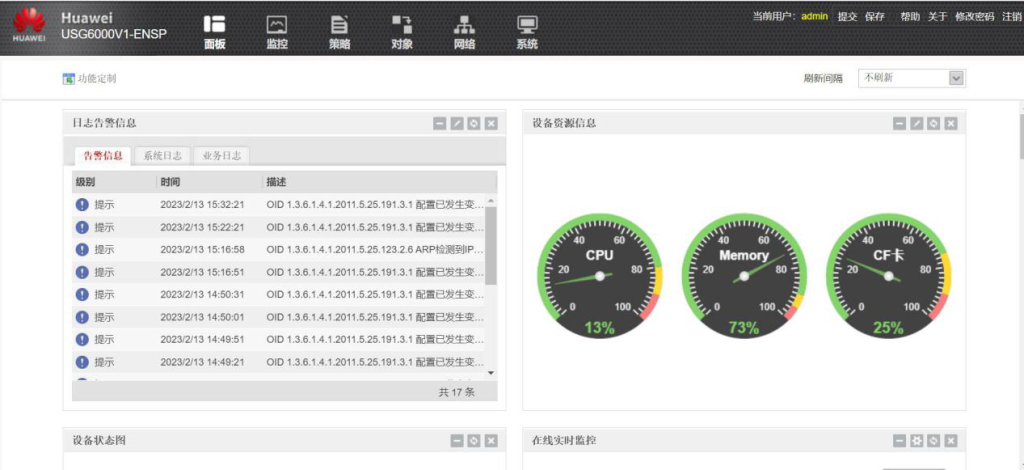

3.防火墙的三种登录模式：web登录防火墙

[FW1]interface GigabitEthernet 0/0/0
[FW1-GigabitEthernet0/0/0]service-manage https permit

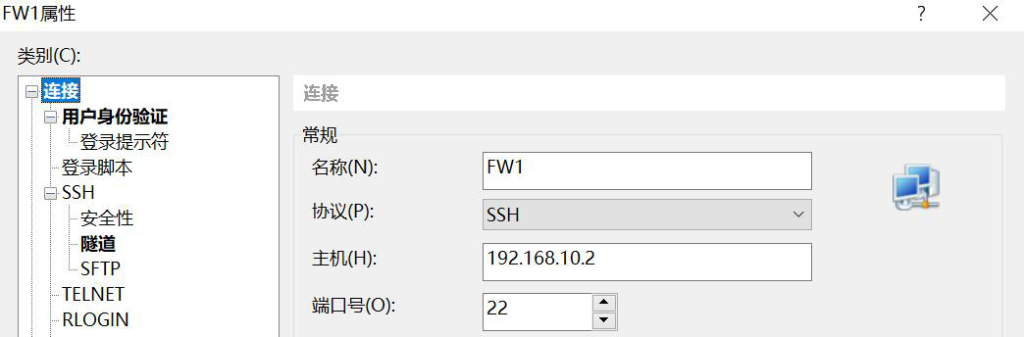

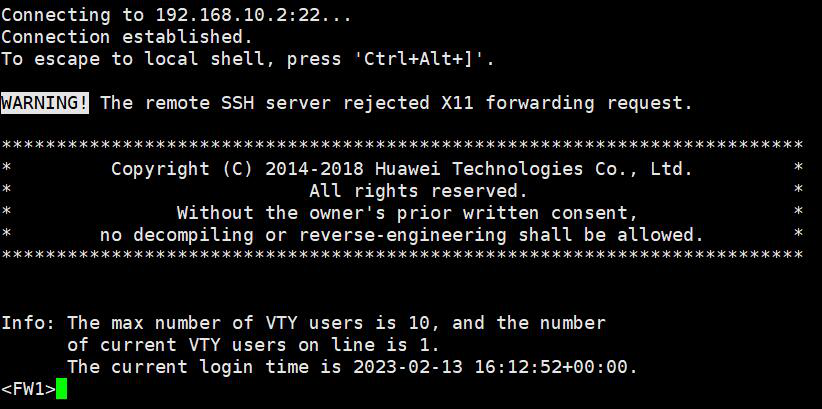

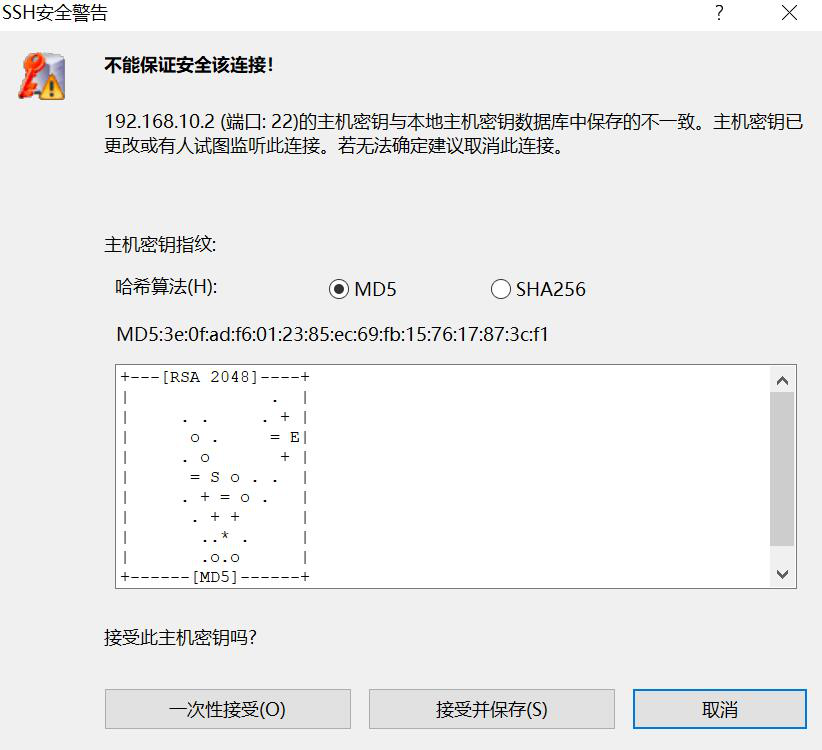

4.防火墙的三种登录模式：ssh登录防火墙

[FW1]]rsa local-key-pair create
//产生RSA本地秘钥
[FW1]user-interface vty 0 4
[FW1-ui-vty0-4]authentication-mode aaa
[FW1-ui-vty0-4]protocol inbound all
[FW1]ssh user admin
// 创建SSH用户admin
[FW1]ssh user admin authentication-type password //为admin用户设置ssh认证为password
[FW1]aaa
[FW1-aaa]manager-user admin
[FW1-aaa]
service-type web ssh terminal
[FW1]ssh user admin service-type stelnet
//为admin用户设置ssh认证服务类型为stelnet
[FW1]stelnet server enable
[FW1]interface GigabitEthernet 0/0/0
[FW1-GigabitEthernet0/0/0]service-manage https permit
