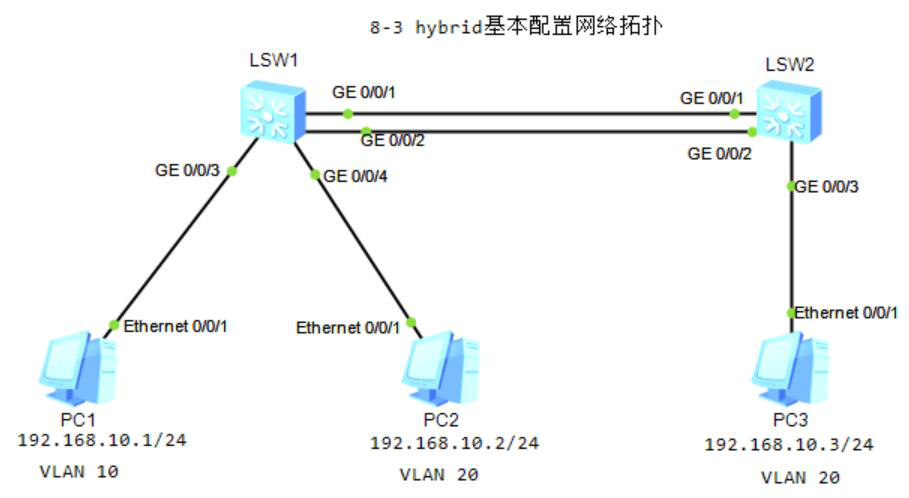

8.3 hybrid接口1

1.SW1设置hybrid接口模式

[sw1]vlan batch 10 20
[sw1]interface GigabitEthernet 0/0/3
[sw1-GigabitEthernet0/0/3]port link-type hybrid
[sw1-GigabitEthernet0/0/3]port hybrid pvid vlan 10
[sw1-GigabitEthernet0/0/3]port hybrid untagged vlan 10 20

[sw1]interface GigabitEthernet 0/0/4
[sw1-GigabitEthernet0/0/4]port link-type hybrid
[sw1-GigabitEthernet0/0/4]port hybrid untagged vlan 10 20

[sw1]interface Eth-Trunk 1
[sw1-Eth-Trunk1]port link-type  hybrid
[sw1-Eth-Trunk1]port hybrid tagged vlan 10 20

2.SW2设置hybrid接口模式

[sw2]interface GigabitEthernet 0/0/3
[sw2-GigabitEthernet0/0/3]port link-type hybrid
[sw2-GigabitEthernet0/0/3]port hybrid pvid vlan 20
[sw2-GigabitEthernet0/0/3]port hybrid untagged vlan 10 20
[sw2]interface Eth-Trunk 1
[sw2-Eth-Trunk1]port link-type hybrid
[sw2-Eth-Trunk1]port hybrid tagged vlan 10 20

3.测试连通性

PC1>ping 192.168.10.2
Ping 192.168.10.2: 32 data bytes, Press Ctrl_C to break
From 192.168.10.2: bytes=32 seq=1 ttl=128 time=47 ms

PC2>ping 192.168.10.3
Ping 192.168.10.3: 32 data bytes, Press Ctrl_C to break
From 192.168.10.3: bytes=32 seq=1 ttl=128 time=62 ms
