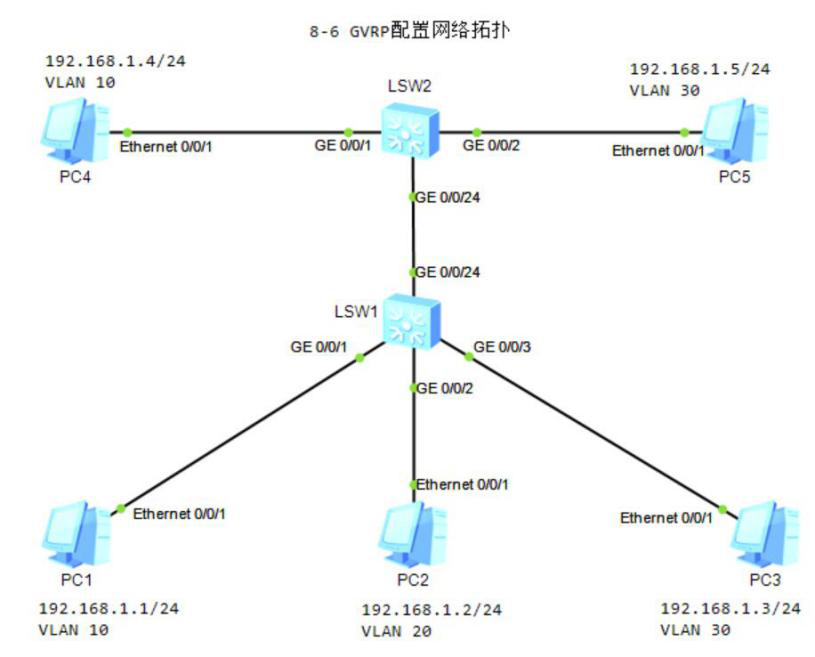

8.6 GVRP

1.SW1配置G24口为trunk模式，允许所有VLAN通过

[SW1]interface GigabitEthernet 0/0/24
[SW1-GigabitEthernet0/0/24]port link-type trunk
[SW1-GigabitEthernet0/0/24]port trunk allow-pass vlan all

2.SW2配置G24口为trunk模式，允许所有VLAN通过

[SW2]interface GigabitEthernet 0/0/24
[SW2-GigabitEthernet0/0/24]port link-type trunk
[SW2-GigabitEthernet0/0/24]port trunk allow-pass vlan all

3.交换机启用GVRP功能

[SW1]gvrp
[SW1]display gvrp status
 Info: GVRP is enabled
[SW2]gvrp
[SW2]display gvrp status
 Info: GVRP is enabled

4.配置SW1的G24接口为fixed模式

[SW1]interface GigabitEthernet 0/0/24
[SW1-GigabitEthernet0/0/24]gvrp
[SW1-GigabitEthernet0/0/24]gvrp registration fixed
[SW1-GigabitEthernet0/0/24]bpdu enable

5.配置SW2的G24接口为normal模式

[SW2]interface GigabitEthernet 0/0/24
[SW2-GigabitEthernet0/0/24]gvrp
[SW2-GigabitEthernet0/0/24]gvrp registration  normal
[SW2-GigabitEthernet0/0/24]bpdu enable

6.查看SW1、SW2gvrp配置

[SW1]display gvrp statistics
  GVRP statistics on port GigabitEthernet0/0/24
    GVRP status                         : Enabled
    GVRP registrations failed           : 0
    GVRP last PDU origin                : 4c1f-cc7d-2156
    GVRP registration type              : Fixed

[SW2]display gvrp statistics

  GVRP statistics on port GigabitEthernet0/0/24
    GVRP status                         : Enabled
    GVRP registrations failed           : 0
    GVRP last PDU origin                : 4c1f-cc5d-0ada
    GVRP registration type              : Normal

7.SW1创建VLAN10、20、30

[SW1]vlan batch 10 20 30
[SW1]display vlan summary
static vlan:
Total 4 static vlan.
  1 10 20 30
dynamic vlan:
Total 0 dynamic vlan.
reserved vlan:
Total 0 reserved vlan.

8.查看SW2学习的VLAN信息

[SW2]display vlan summary
static vlan:
Total 1 static vlan.  1

dynamic vlan:
Total 3 dynamic vlan.
  10 20 30
reserved vlan:
Total 0 reserved vlan.

9.SW2创建VLAN100，SW1查看VLAN信息，未学习到VLAN100

[SW2]vlan 100
[SW1]display vlan summary
static vlan:
Total 4 static vlan.
  1 10 20 30
dynamic vlan:
Total 0 dynamic vlan.
reserved vlan:
Total 0 reserved vlan.

10.SW1修改G24口模式为normal类型，查看VLAN信息，学习到了VLAN100

[SW1]interface GigabitEthernet 0/0/24
[SW1-GigabitEthernet0/0/24]gvrp registration normal
[SW1]display vlan summary
static vlan:
Total 4 static vlan.
  1 10 20 30
dynamic vlan:
Total 1 dynamic vlan.
  100
reserved vlan:
Total 0 reserved vlan.
