18.9 VRF基础

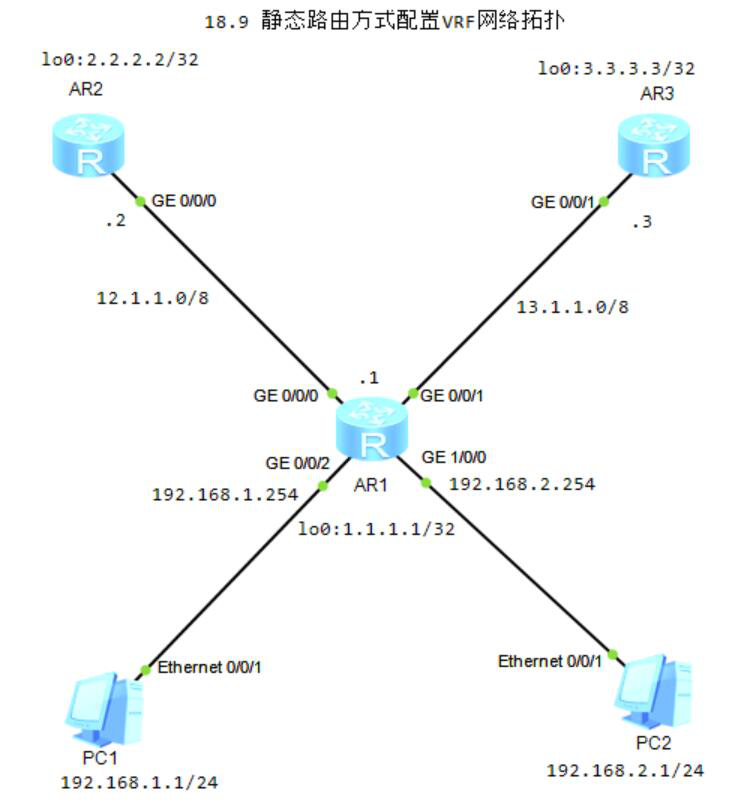

1.静态路由方式配置VRF

1）R1创建vpn-instance R2，下行端口绑定vpn-instance R2

[R1]ip vpn-instance R2
[R1-vpn-instance-R2]ipv4-family
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip binding vpn-instance R2
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R1-GigabitEthernet0/0/2]ip address 192.168.1.254 24

2）PC1连通性测试R1,通信正常

PC>ping 192.168.1.254
Ping 192.168.1.254: 32 data bytes, Press Ctrl_C to break
From 192.168.1.254: bytes=32 seq=1 ttl=255 time=47 ms

3）R1连通性测试PC1,通信不正常

[R1]ping 192.168.1.1
  PING 192.168.1.1: 56  data bytes, press CTRL_C to break
    Request time out

4）R1使用vpn-instance参数连通性测试PC1,通信正常

[R1]ping -vpn-instance R2 192.168.1.1
  PING 192.168.1.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.1.1: bytes=56 Sequence=1 ttl=128 time=10 ms

5）R1上行端口绑定vpn-instance R2

[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip binding vpn-instance R2
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R1-GigabitEthernet0/0/0]ip address 12.1.1.1 24

6）R1创建vpn-instance R2静态路由，R2创建静态路由

[R1]ip route-static vpn-instance R2 1.1.1.1 32 12.1.1.2
[R2]ip route-static 192.168.1.0 24 12.1.1.1

7）PC1连通性测试R2的loopback0端口

PC>ping 1.1.1.1
Ping 1.1.1.1: 32 data bytes, Press Ctrl_C to break
From 1.1.1.1: bytes=32 seq=1 ttl=254 time=15 ms

8）R1创建vpn-instance R3，上行、下行端口绑定vpn-instance R3

[R1]ip vpn-instance R3
[R1-vpn-instance-R3]ipv4-family

[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip binding vpn-instance R3
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R1-GigabitEthernet0/0/1]ip address 13.1.1.1 8

[R1]interface GigabitEthernet 1/0/0
[R1-GigabitEthernet1/0/0]ip binding vpn-instance R3
Info: All IPv4 related configurations on this interface are removed!
Info: All IPv6 related configurations on this interface are removed!
[R1-GigabitEthernet1/0/0]IP address 192.168.2.254 24

9）R1创建vpn-instance R3静态路由，R3创建静态路由

[R1]ip route-static vpn-instance R3 1.1.1.1 32 13.1.1.3
[R3]ip route-static 192.168.2.0 24 13.1.1.1
